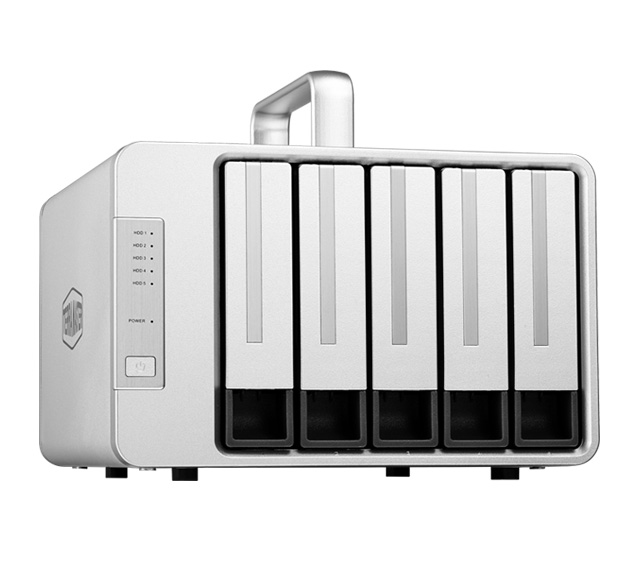

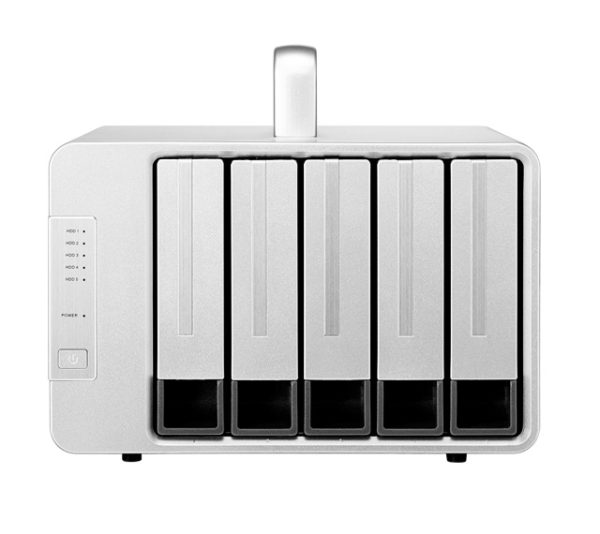

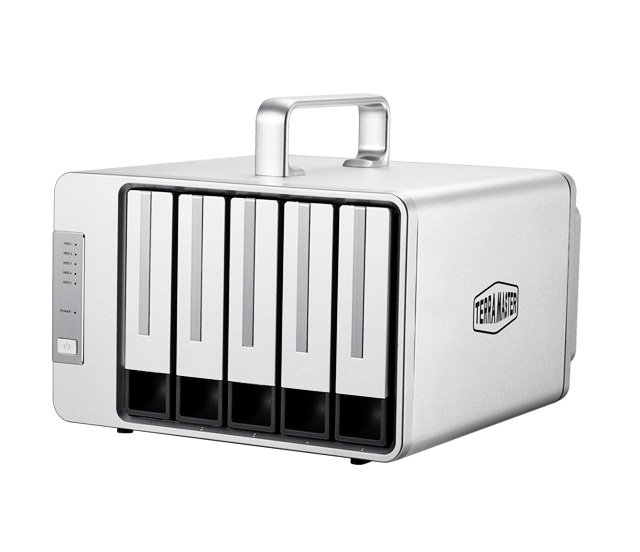

Terramaster D5 Thunderbolt 3 – 5-Bay DAS

Lightning Speed!

The D5 Thunderbolt 3 is equipped with a 40-Gbps lightning speed interface, and the read and write support attains speeds of up to 1,035 MB/s (test conditions: 5 HDDs, RAID 0 mode). The device is compatible with daisy chaining across multiple Thunderbolt™ 3 devices, and each one can be realized using the Thunderbolt interface.

spesifikasi

Kenali Lebih Dalam Fitur & Kapabilitas Produk

Spesifikasi
Disk Slot Number

5

Compatible Disk Types

3.5″ SATA HDD
2.5″ SATA SSD

2.5″ SATA HDD

Maximum Internal Raw Capacity

80TB (16 TB drive x 5) (Capacity will vary along with the RAID type)

RAIDs Supported

SINGLE DISK,JBOD,RAID 0,RAID 1,RAID5,RAID10

Thunderbolt Data Transmission

40Gb Thunderbolt 3 x 1

Thunderbolt Daisy Chain

40Gb Thunderbolt 3 x 1

USB Host

USB 3.1 Gen2 host (Use to connect USB storage device)

Power Socket

DC IN 12V

Reading & Write Speed (max.)

Read: 1035MB/sec(Use HDD under RAID 0 mode)
Read: 830MB/sec(Use HDD under RAID 5 mode)

Write: 917MB/sec(Use HDD under RAID 0 mode)
Write: 850MB/sec(Use HDD under RAID 5 mode)

Power Supply

120 W

Supported OS

Windows OS、Mac OS

Warranty

2 years
