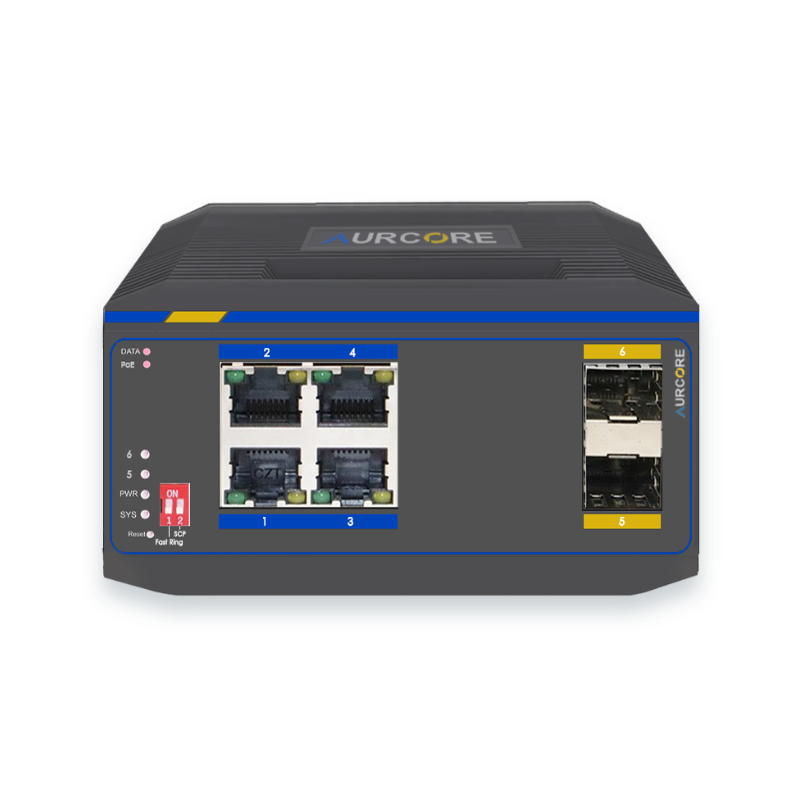

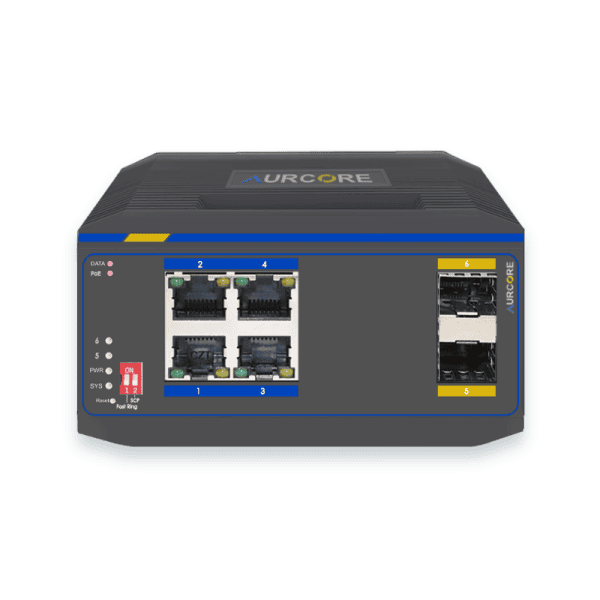

Aurcore AIS2001P Indistrial Network Switch 4GE, 2GE SFP, PoE/PoE+
Overview
The AIS2001P is a compact, industrial-grade Layer 2+ managed switch engineered for high-performance networking in demanding
environments. It simplifies deployment in applications such as surveillance and loT/lloT wireless access by supporting Power over
Ethernet (PoE+), reducing cabling complexity and installation costs. Additional capabilities include dual power input support, integrated lightning and ESD protection, and versatile management
options via Console, SSH, and Web interfaces using AURC-NOS ACC/ACN. ldeal for industrial automation, transportation infrastructure, and outdoor deployments, the AIS2001P delivers robust connectivity with streamlined integration.
Features:
• Ports: 4GE+2GE SFP PoE/PoE+
• Jumbo Frame: 9216Bytes
• Switching Capacity: 12 Gbps
• Forwarding Rate: 8.92 Mpps
• Packet Buffer: 4.1Mbit
• Surge Protection: Differential mode ±2KV. Common mode ±6KV
• Dimensions (LxWxH): 4.33″ × 3.54″ × 1.81″ (110*90*46mm)
• Operating Temperature: -40°C ~ 75°C(-40°F to 167°F)
• Operating Humidity: 5% ~ 95% non-condensing
Specs:
• Model AIS2001P
• Interface 4 x GE | 2 x GE SFP | PoE/PoE+ (af/at)
• Management Port 1 x Console Port
• Packet Forwarding Rate 8.92 Mpps
• Switching Capacity 12 Gbps
• PoE Power Budget 120W
• Dimension(L*W*H) 4.33“ × 3.54“ × 1.81″
• Operating Temperature -40 °C to 75 °C (-40 °F to 167 °F)
• Storage Temperature -40 °C to 80 °C (-40 °F to 176 °F)
3-Years Limited Warranty
