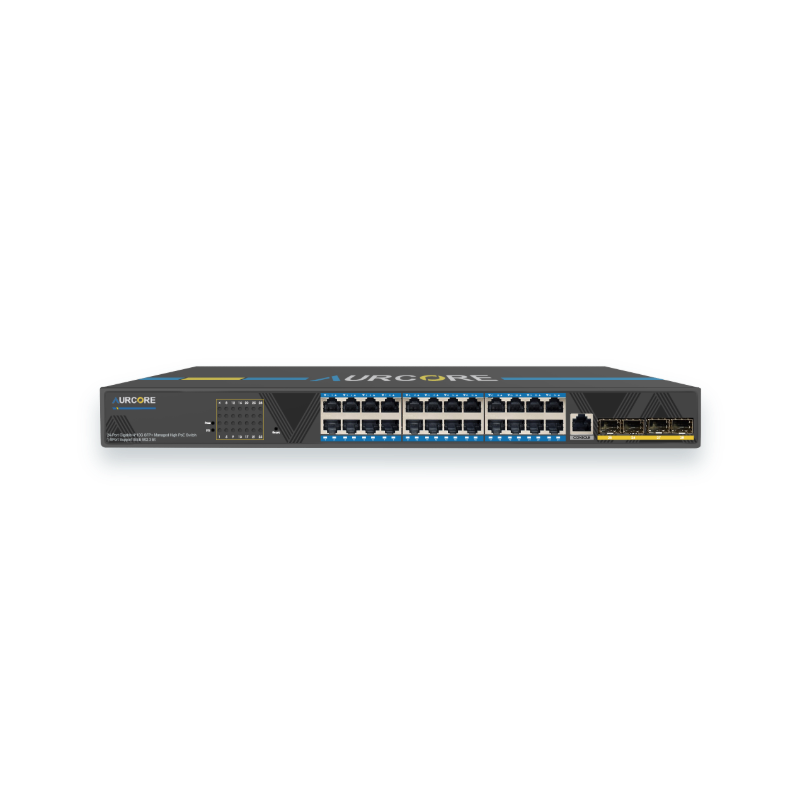

Aurcore AES4001P Network Switch 24GE, 4 SFP+, PoE/PoE+
Overview
The AES4001P delivers 24×10/100/1000Mbps PoE+ ports and 4×10G SFP+ uplinks, supporting IEEE 802.3af/at with up to 30W per port for power-hungry access points and IP devices. Designed for secure and scalable deployment, it offers static routing, VLAN, ACL, and QoS. With ±4KV surge protection, auto MDI/MDIX, and full AURC-Net support, the switch delivers stable power and reliable control for enterprise networks.
Features:
• 24 PoE+ ports supporting up to 30W each, total power 370W
• 4x 10G SFP+ uplinks and console port for flexible deployment
• Supports APs, IP cameras, and other powered devices
• Includes VLAN, ACL, LACP, QoS, and flow control features
• Centralized management via AURC-Net, Web, CLI, and SSH
• ±4KV/±2KV surge protection and DoS defense for reliability
Specs:
• Model AES4001P
• Interface 24 x GE | 4 x 10 GE SFP+ | L3 PoE+Management Port 1 x Console Port
• Packet Forwarding Rate 95.23 Mpps
• Switching Capacity 128 Gbps
• Dimension(L*W*H) 17.32’’ × 8.15’’× 1.73’’ / 1U height
• PoE Power Budget 370W
• Operating Temperature 0 °C to 40 °C (32 to 104 °F)
• Storage Temperature -40 °C to 70 °C (-40 to 158 °F)
3-Years Limited Warranty
