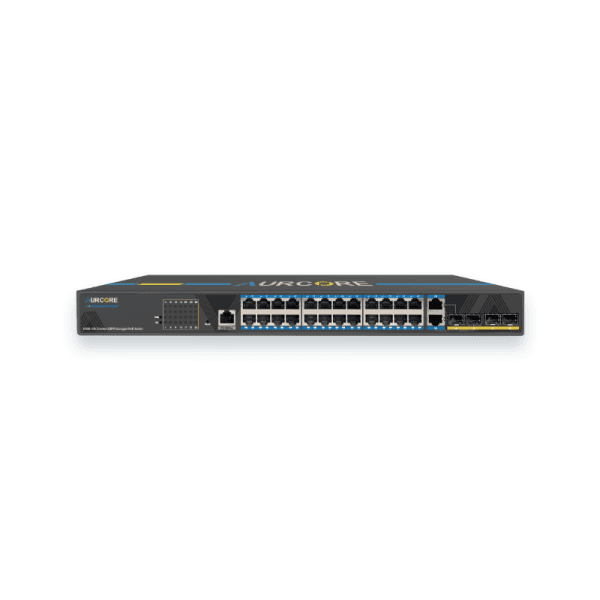

Aurcore AES2002P Network Switch 24GE, 2GE Combo, 2GE SFP, PoE/PoE+
Overview
The AES2002P is a 24-Port Managed PoE+ Switch with 2×combo and 2×SFP uplinks, providing flexible expansion and up to 370W of PoE+ power for IP surveillance, access points, and smart devices. All 24 RJ45 ports support IEEE 802.3af/at PoE+, with up to 30W per port. Designed for enterprise-grade reliability, it includes static routing, VLAN, ACL, QoS, and built-in surge protection. AURC-Net centralized management makes configuration simple and scalable for network administrators.
Features:
• Up to 24 PoE+ ports with total power budget of 370W
• Includes 2×combo + 2×SFP uplinks for flexible network deployment
• Fully compliant with IEEE 802.3af/at PoE standards
• Supports VLAN, ACL, QoS, LACP, and DoS protection
• Flexible management via Web, CLI, SNMP, SSH, and AURC-Net
• ±4KV/±2KV surge protection for enhanced equipment safety
Specs:
• Model AES2002P
• Interface 24 x GE PoE+ | 2 x GE Base-T/SFP Combo| 2xGESFP| PoE+
• Management Port 1 x Console Port
• Packet Forwarding Rate 41.66 Mpps
• Switching Capacity 56 Gbps
• Dimension(L*W*H) 17.32’’ × 8.15’’× 1.73’’ / 1Uheight
• PoE Power Budget 370W
• Operating Temperature 0 °C to 40 °C (32 to 104 °F)
• Storage Temperature -40 °C to 70 °C (-40 to 158 °F)
3-Years Limited Warranty
spesifikasi
Kenali Lebih Dalam Fitur & Kapabilitas Produk
AMD Ryzen V1500B
4
64-bit
2.2 GHz
4 GB DDR4 ECC SODIMM
2
32 GB (16 GB x 2)
12
4
2
1
Mini-SAS HD
1 x Gen3 x8 slot (x4 link)
270 mm x 300 mm x 340 mm
550 watts
100V to 240V AC
3-year hardware warranty, extendable to 5 years with EW202 or Extended Warranty Plus
